Holding Technology

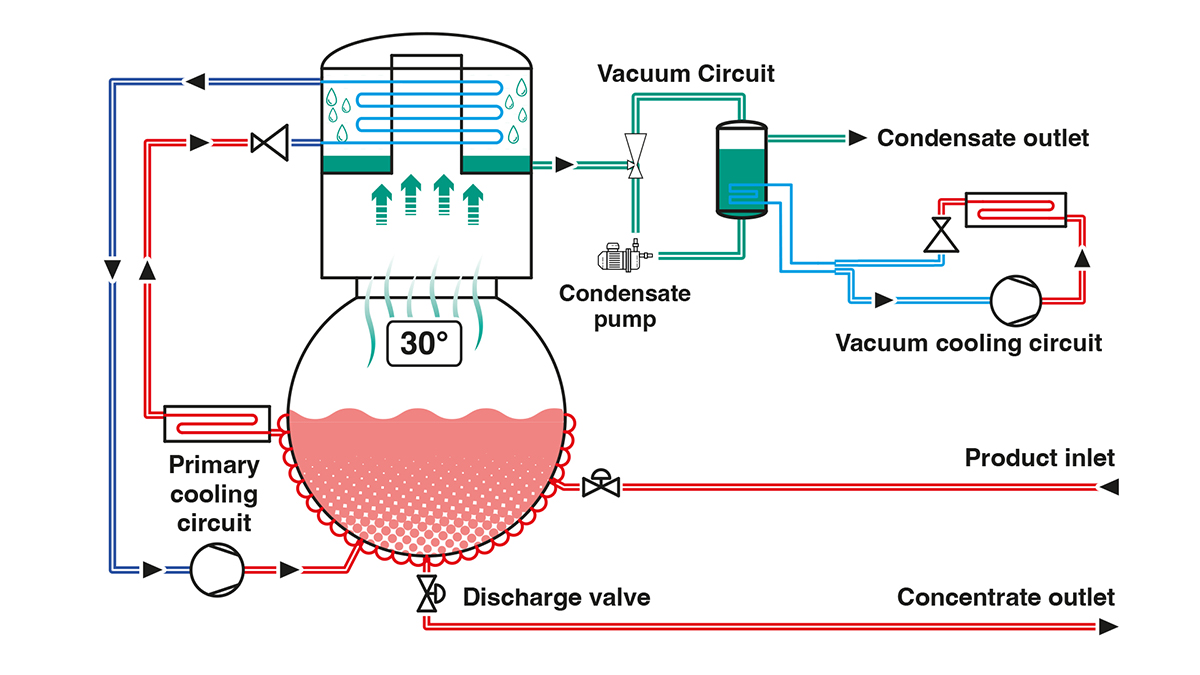

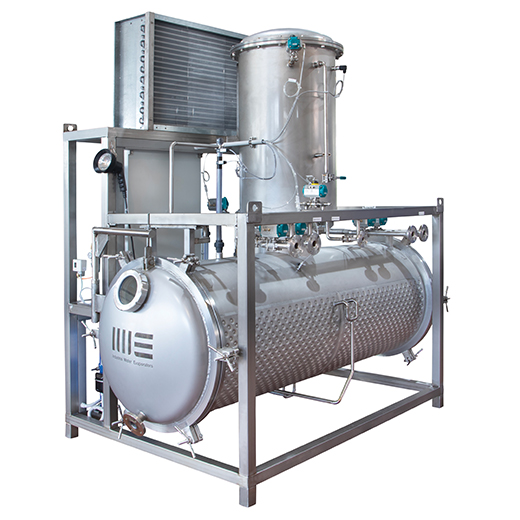

HEAT-PUMP 감압증발농축기
외부 자켓 열교환기
|
HP 5 DRY |
HP 10 DRY |
HP 15 DRY |
HP 20 DRY |
HP 30 DRY |
HP 40 DRY |
HP 50 DRY |
HP 70 DRY |
Production with water (l/24h) |
120 |
240 |
360 |
480 |
720 |
960 |
1.200 |
1.680 |
Electrical power consumption indicative (kW) |
1,6 |
2,7 |
3,8 |
5,0 |
7,8 |
10,50 |
12,50 |
17,50 |
Indicative dimensions (l x w x h cm) |
70ⅹ120ⅹ170 |
80ⅹ150ⅹ150 |
80ⅹ220ⅹ220 |
120ⅹ220ⅹ220 |
180ⅹ260ⅹ245 |
150ⅹ260ⅹ260 |
160ⅹ300ⅹ300 |
160ⅹ320ⅹ280 |
