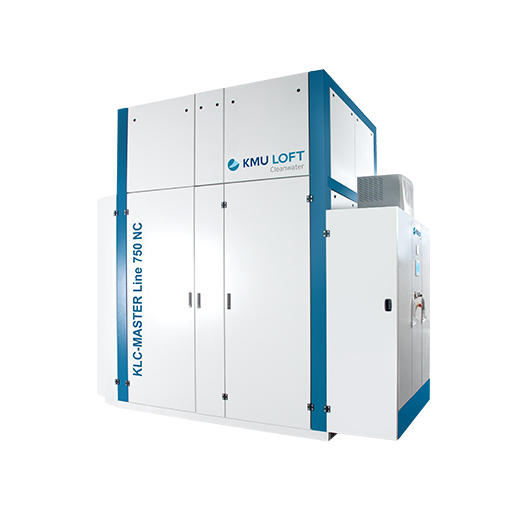

MASTER Line FC

강제 순환형 MVR 감압증발농축기

증발 과정에서 발생한 증기를 전량 Rotary Blower를 통해 기계식 재 압축하여 열원으로 재사용하는 에너지혁신형 증발농축기술입니다.
MASTER FC LINE은 순환 펌프가 설치되어 폐수를 순환시키며, 이 과정에서 발생된 증기와 열교환을 통해 깨끗한 물로 처리 됩니다.

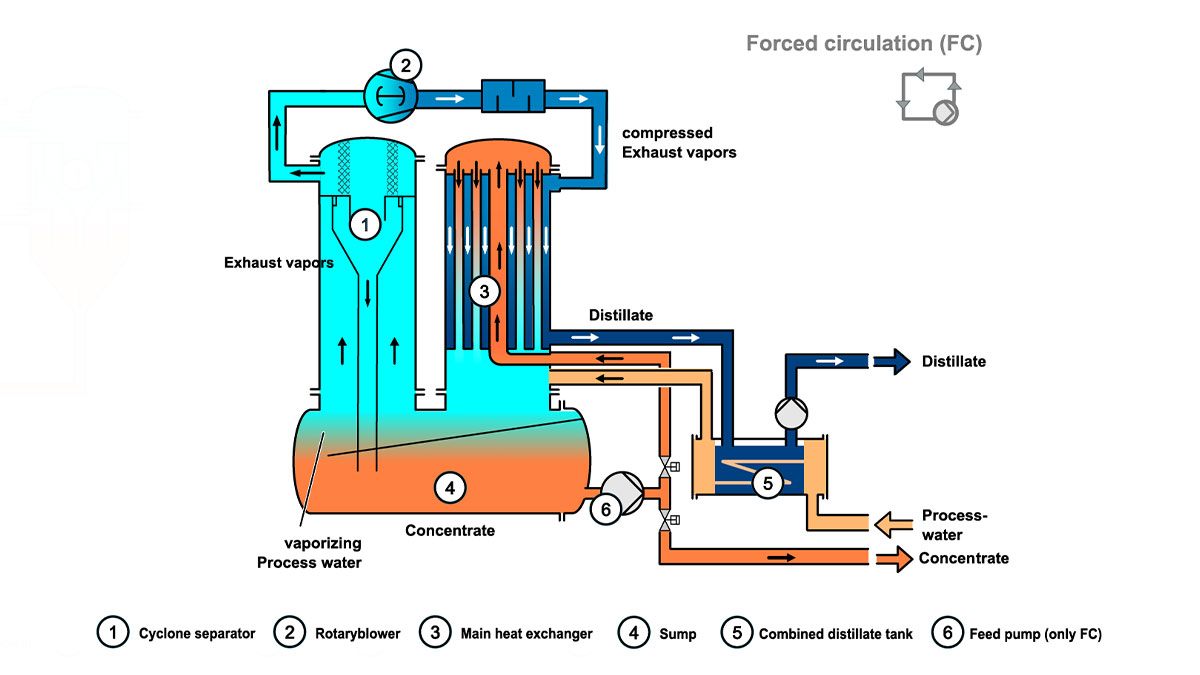

MASTER Line FC 운전 모식도
MASTER Line FC 표준 모델 및 기본사양

KLC-MASTER Line

Capacity
[t/h]

Capacity per
year²⋅⁴[m³]
(7000 h/a)

Installed power
[kW]

Energy consumption³⋅⁴
[kWh/tm³]
starting from

Weight empty
[kg]

Dimensions
L x W x H
[mm]

NC

FC

NC

FC

100 NC/FC

120

840

16

19

60

1,600

1,750

2,407 × 1,350 × 2,355

150 NC/FC

180

1,260

20

23

60

1,600

1,750

2,407 × 1,350 × 2,355

200 NC/FC

230

1,610

27

30

60

1,700

1,850

2,407 × 1,350 × 2,355

250 NC/FC

288

2,013

38

42

50

3,000

3,100

2,753 × 1,430 × 2,500

300 NC/FC

345

2,415

38

42

50

3,000

3,100

2,753 × 1,430 × 2,500

350 NC/FC

403

2,818

45

49

50

3,200

3,300

2,753 × 1,430 × 2,500

400 NC/FC

460

3,220

45

49

50

3,200

3,300

2,753 × 1,430 × 2,500

550 NC/FC

633

4,428

68

75

40

4,200

4,400

3,564 × 1,950 × 3,320

750 NC/FC

863

6,038

68

75

40

4,200

4,400

3,564 × 1,950 × 3,320

1000 NC/FC

1,100

7,760

103

114

35

7,600

8,000

4,200 × 2,430 × 3,550

1400 NC/FC

1,540

10,780

103

114

35

7,600

8,000

4,200 × 2,430 × 3,550

1800 NC/FC

1,980

13,860

123

134

35

8,000

8,400

4,200 × 2,430 × 3,550

2000 NC/FC

2,200

15,400

145

156

35

11,000*

11,000*

4,471 × 2,928 × 3,597

2200 NC/FC

2,420

16,940

145

156

35

11,000*

11,000*

4,471 × 2,928 × 3,597

2500 NC

2,750

19,250

145

 156

35

11,000*

 11,000*

4,471 × 2,928 × 3,597

3000 NC

3,300

23,100

200

 /

35

14,000*

 /

5,550 × 2,432 × 4,220*

3500 NC

3,850

26,950

250

 /

35

14,000*

 /

5,550 × 2,432 × 4,220*
