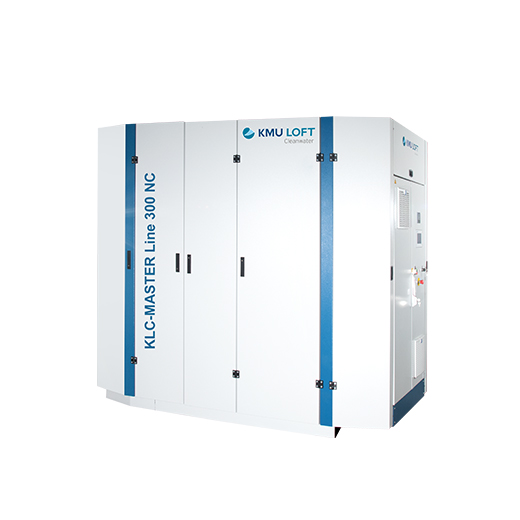

MASTER Line NC

자연 순환형 MVR 감압증발농축기

증발 과정에서 발생한 증기를 전량 Rotary Blower를 통해 기계식 재 압축하여 열원으로 재사용하는 에너지혁신형 증발농축 기술입니다.
MASTER NC LINE은 폐수가 온도와 밀도 차이에 의해 발생하는 대류 현상에 의해 열역학적으로 순환화며 처리됩니다.

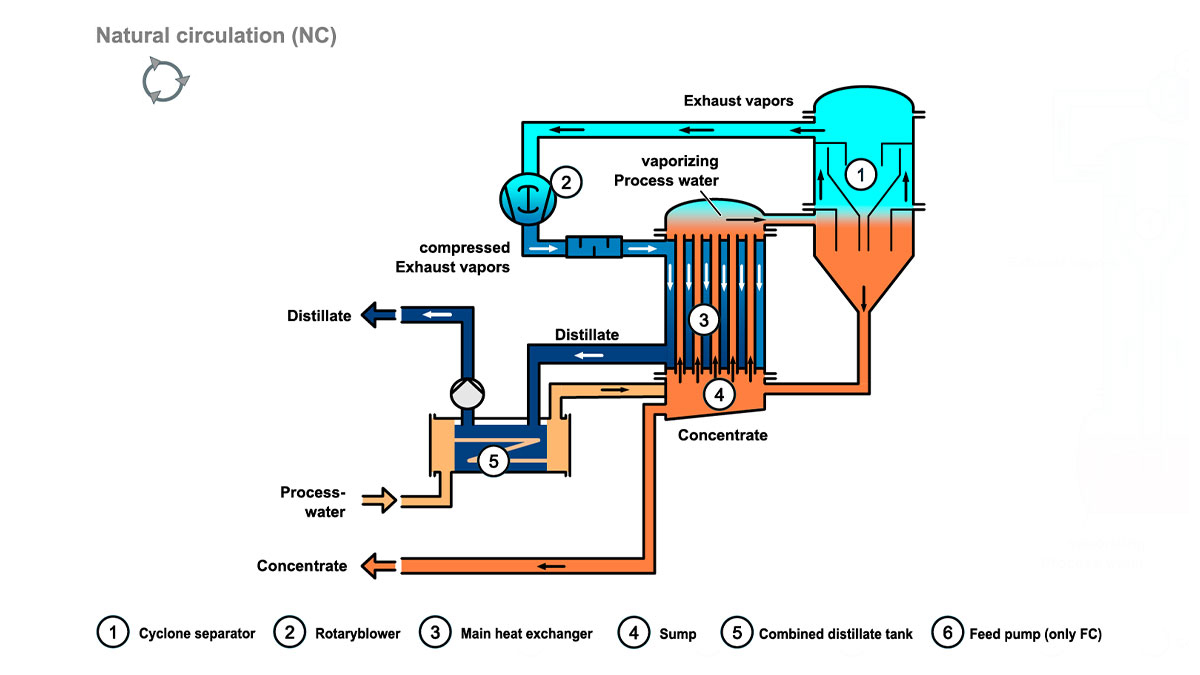

MASTER Line NC 운전 모식도
MASTER Line NC 표준 모델 및 기본사양

KLC-MASTER Line

Capacity
[t/h]

Capacity per
year²⋅⁴[m³]
(7000 h/a)

Installed power
[kW]

Energy consumption³⋅⁴
[kWh/tm³]
starting from

Weight empty
[kg]

Dimensions
L x W x H
[mm]

NC

FC

NC

FC

100 NC/FC

120

840

16

 19

60

1,600

1,750

2,407 × 1,350 × 2,355

150 NC/FC

180

1,260

20

23

60

1,600

1,750

2,407 × 1,350 × 2,355

200 NC/FC

230

1,610

27

30

60

1,700

1,850

2,407 × 1,350 × 2,355

250 NC/FC

288

2,013

38

42

50

3,000

3,100

2,753 × 1,430 × 2,500

300 NC/FC

345

2,415

38

42

50

3,000

3,100

2,753 × 1,430 × 2,500

350 NC/FC

403

2,818

45

49

50

3,200

3,300

2,753 × 1,430 × 2,500

400 NC/FC

460

3,220

45

49

50

3,200

3,300

2,753 × 1,430 × 2,500

550 NC/FC

633

4,428

68

75

40

4,200

4,400

3,564 × 1,950 × 3,320

750 NC/FC

863

6,038

68

75

40

4,200

4,400

3,564 × 1,950 × 3,320

1000 NC/FC

1,100

7,760

103

114

35

7,600

8,000

4,200 × 2,430 × 3,550

1400 NC/FC

1,540

10,780

103

114

35

7,600

8,000

4,200 × 2,430 × 3,550

1800 NC/FC

1,980

13,860

123

134

35

8,000

8,400

4,200 × 2,430 × 3,550

2000 NC/FC

2,200

15,400

145

156

35

11,000*

11,000*

4,471 × 2,928 × 3,597

2200 NC/FC

2,420

16,940

145

156

35

11,000*

11,000*

4,471 × 2,928 × 3,597

2500 NC

2,750

19,250

145

 156

35

11,000*

 11,000*

4,471 × 2,928 × 3,597

3000 NC

3,300

23,100

200

 /

35

14,000*

 /

5,550 × 2,432 × 4,220*

3500 NC

3,850

26,950

250

 /

35

14,000*

 /

5,550 × 2,432 × 4,220*
